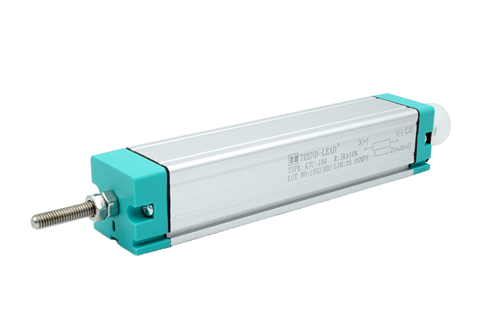

KTC Potentionmeter conductive plastic linear

  • Long service life, up to 50X 106 times. 。
  • Excellent linearity。
  • Higher resolution 0.01mm。
  • High running speed。

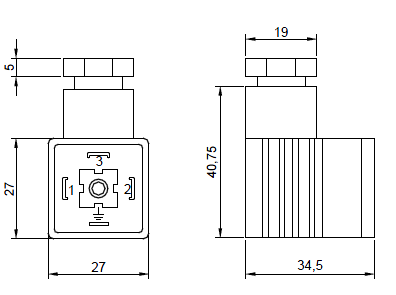

  • DIN43650 Standard plug and socket。
  • Protection level IP65。



​Improved design to meet the measurement needs of various conditions。
The sensor is rugged and shock-resistant。
No electrical signal output changes after theoretical electrical travel, making installation easier。
The new slot design is an ideal alternative to traditional bracket-mounted systems。
Widely used in plastic molding machines,

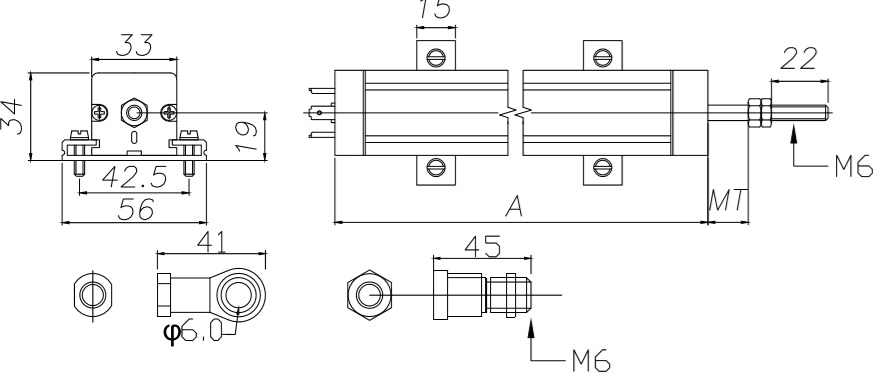

Installation dimension drawing


 ▪ KTC(E)
