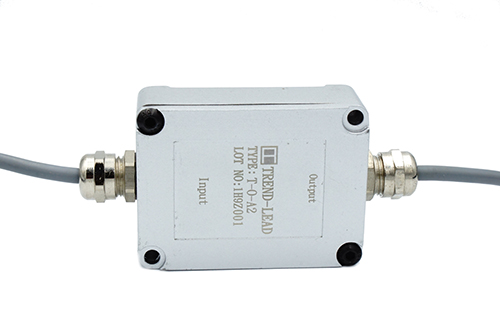

MP Signal conversion module

It can be easily connected to any resistance ruler.
Signal output: 0~5V; 0~10V; -5~5V; -10~10V; 4~20mA; RS-485.
Current module: The voltage signal is converted into a current signal of 4~20mA, which is divided into two wires and three wires.
Voltage module: The 12~24V working voltage is regulated and output as 0~5V or 0~10V voltage signal.
RS485 module: converts analog signals into RS485 digital signals.

Detail

External transmission module

   T     -   O(外置式)    -      V1(0~5V)
(Trend-Lead)                    V2(0~10V)
                                         V2(-5~5V)
                                         V2(-10~10V)
                                         A1(4~20mA  Three-wire system)
                                         A2(4~20mA  Two-wire system)
                                        RS:RS485
