Signal conversion module

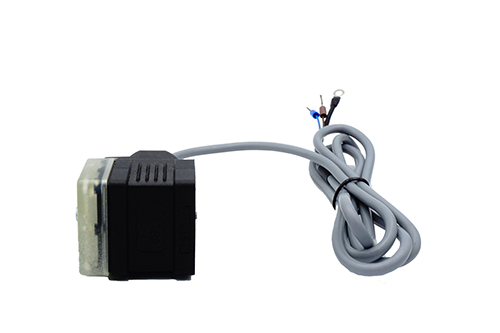

Plug-type transmission module:

It is convenient to connect KTC/KTF resistance scales.
Signal conversion output: 0~5V; 0~10V; 4~20mA.
Current module: converts the voltage signal into a current signal of 4~20mA, which is divided into two wires and three wires.
Voltage module: The 12~24V working voltage is regulated and output as 0~5V or 0~10V voltage signal.

T - P(Plug type) - V1(0~5V)
(Trend-Lead) V2(0~10V)
A1(4~20mA Three-wire system)
A2(4~20mA Two-wire system)
