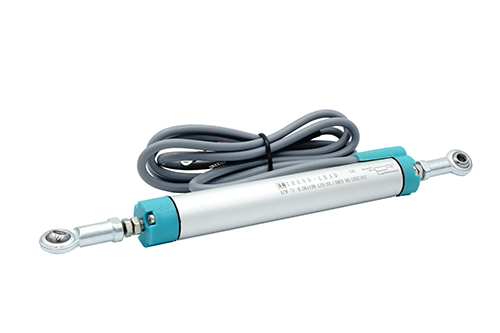

KPMMiniature articulated displacement sensor

  • Long service life, up to 50 X 106 times 。
  • Small size.
  • Higher resolution 0.01mm。
  • High running speed。
  • Ball joint for free movement at large angles (±12.5°)。
  • Protection levelIP67。
  • Configurable voltage and current (2-wire, 3-wire) modules



  1. Improved design to meet the measurement needs of various conditions.
  2. The sensor is rugged and shock-resistant.
  3. No electrical signal output changes after theoretical electrical travel, making installation easier.

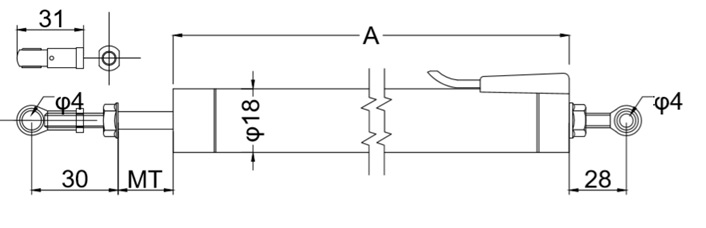

Installation dimension drawing


Shipping standard:

Fish eye connector x2


 ▪ KPM(E)
